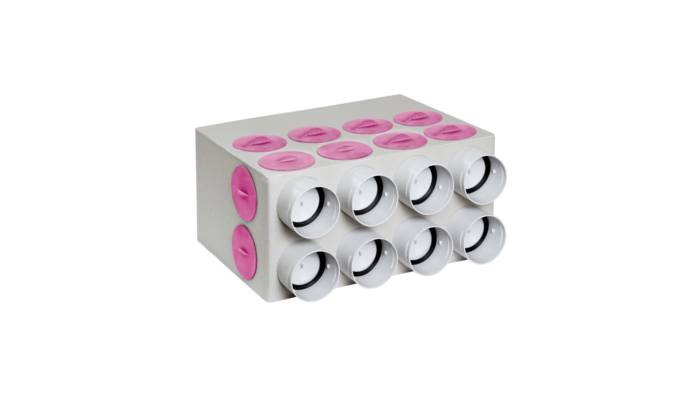

Slim Little PVC Distribution BoxHRV Distribution System
Box for the distribution of fresh air to habitable rooms or for the extraction of exhaust air from humid rooms.
The presence of the new built-in threaded caps , made of eco-friendly magenta-coloured plastic, allows you to vary the position and number of connections by simply exchanging the caps themselves.
• made entirely of 3 mm thick anti-condensation PVC
• internally lined with a 10 mm thick polyester fibre panel , in turn lined with a self-extinguishing protective film that is impermeable to water, oil and dust
• externally coated with 3 mm thick expanded polyethylene insulation
The boxes have a main PP connection with gasket (diameter Ø125-Ø160 or Ø160-Ø180 variable from model to model), to be connected to the ventilation unit via a rigid or flexible duct (possibly with the interposition of a silencer, not supplied but still recommended).
Fixing is foreseen on the wall or ceiling using 4 adjustable “L” brackets with relative self-tapping screws for PVC supplied. For distribution to the various rooms they have PP connections (of the «Grey» type) to the semi-rigid round pipes (Ø75 or Ø90, depending on the model).
FITT Agix Smart Box is available in three different sizes : S , M and L.
With the sealing rings/gaskets for the semi-rigid pipes included (inserted inside the GREY collars).
