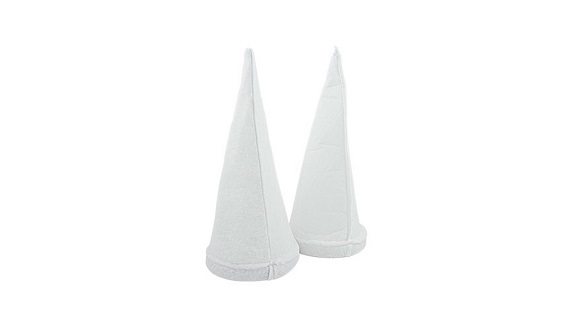

STRDuct filter

The duct filter fits in all fittings with a Safe-groove. To install the filter in a T-piece means a simple mounting and replacing.

The special tapered shape gives 4–5 times larger filter area than the equivalent duct cross section area, giving lower pressure drop and longer exchange intervals than the
equivalent flat filter.

Standard filter class is G4, but class M5 is optionally available. The diagram shows the pressure drop across a clean filter, including T-piece. The filter can be used to twice this pressure drop. It is a good idea to dimension the system for the average value.

D p_{t dim} = 1,5 · D p_{t clean}

Max temperature = 120 °C
Highest recommended air speed in the duct.
