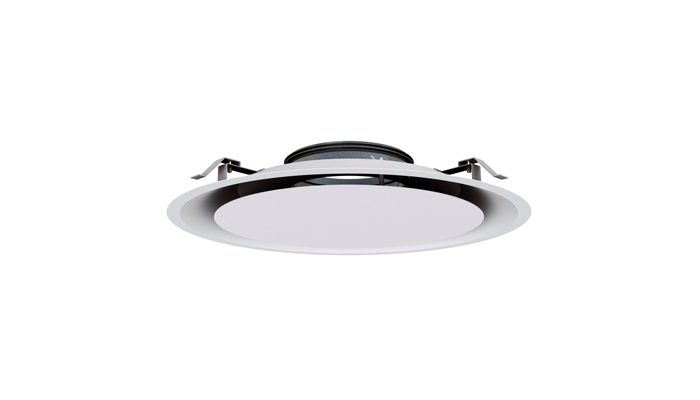

LCCCeiling diffuser

LCC is a flush mounted circular diffuser with a circular unperforated face plate for installation in ceiling systems and permanent ceilings. LCC can be used for both supply and extract air. LCC is suitable for horizontal supply of cooled air and has a large dynamic range.
Installing an LCC diffuser in a plenum box type MB can help to achieve a stable airflow to the diffuser as well as realise the potential for individual adjustment.
Damper type B is an unique linear cone damper which allows to use the full operational area (0-100%) and allows to balance with a high pressure drop over the box with low sound generation. Furthermore the construction of the damper gives an accurate and reliable measurement.
Damper type C and E are with rotating blade dampers for respectively supply and extract. Typically used in applications that don’t require a high balancing pressure in the plenum box.
The LCC can with the plenum box MBBV be used in a Pascal system.
The LCC can be ordered with a presence sensor (-P), a temperature sensor (-T) or both (-P-T). The sensors are built into the faceplate.

• Simple and aesthetic appearance
• Large dynamic range
• Can be used for both supply and extract air
• Plenum box with several damper options
