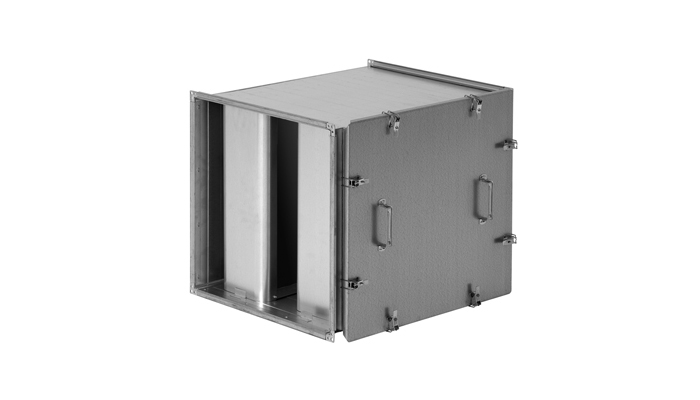

DLDRRectangular straight silencer

DLDR has a conventional design with dimensions that not exceed the corresponding connection dimensions. The attenuator can be manufactured in all standard duct sizes.

The attenuator is provided with cleaning hatch and removable baffles.

Design

DLDR has an outer sheet casing of trapezoidal corrugated sheet metal for stability and reduced risk of natural oscillation.
DLDR is designed for low air resistance with baffle combinations that attenuate particularly low-frequency noise well.
The type of insulation material has been developed to provide good noise properties, low weight and to be cleanable.

DLDR meets the requirements of air tightness class C and pressure class 2 according to EN 1507:2006.

DLDR is equipped with joining profile type RJFP.

Tools for dimensioning and planning

The software lindQST, DIMsilencer and Cadvent offer features for dimensioning and selection of products in an environment with 3D modelling. Computerised planning can be conducted with automatic presentation of noise levels, pressure drop etc.

Tested according to ISO 7235 standard.
