CAS/ATEXATEX Fans

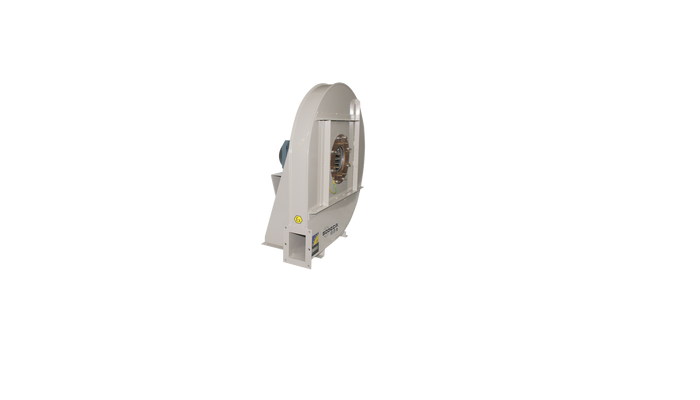

High pressure single inlet centtrifugal fans, with ATEX 2G or 2D certification and Ex db, Ex tb motorATEX 2G or 2D certified, high pressure centrifugal extractor fans with flameproof ExII2G Ex db, increased safety ExII2G Ex eb or dust ignition proof ExII2D Ex tb motor to work in explosive gas or dust atmospheres.

Fan:
• Sheet steel casing.
• Backward curved impeller in sheet steel, except models 242, 248, 254, 260, 640, 645 and 650 in cast aluminum impeller.
• Non-sparking inlet ring made of copper.
• Maximum temperature of air to be carried: -25 ºC +80 ºC.
• Standard marking with flameproof motor (Ex db): II 2G Ex h IIB T4 Gb.
• Standard marking with increased safety motor (Ex eb): II 2G Ex h IIB T3 Gb.
• Standard marking with motor for dust ignition proof (Ex tb): II 2D Ex h IIIC T135 ºC Db.

Motor:
• Class F motors with ball bearings and ATEX certification flameproof Ex db, increased safety Ex eb or dust ignition proof Ex tb.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -20 ºC +40 ºC.

Finish:
• Anti-corrosive with ATEX paint, free of iron components, in polyester resin polymerized at 190 ºC, after degreasing with phosphate-free nanotechnological treatment.

On request:
• Motors with built-in PTC.
• Special windings for different voltages and frequencies.
• ATEX construction for flammable dust.
• ATEX fan with greater protection than the standard marking.
• Fans with 2 speed motor.
